3K is now part of BorgWarner Turbo Systems, a leading supplier of innovative turbocharging systems and a competent partner to the automotive industry worldwide. In the engine output range of 20-1000 kW per exhaust gas turbocharger, BorgWarner Turbo Systems offers a broad range of products for passenger cars and commercial vehicles, as well as for industrial, locomotive and marine engines.
Visit the BorgWarner Website
Take me back to:
Welcome Screen

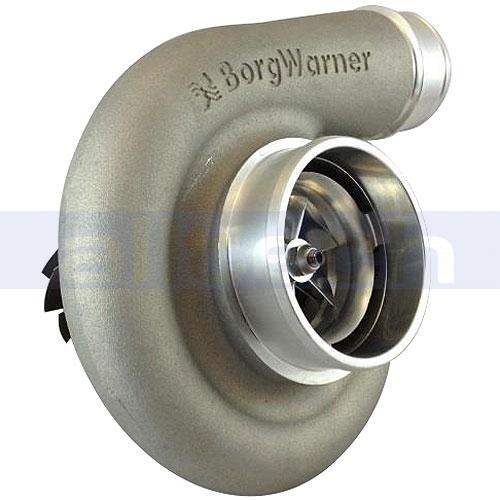

| BorgWarner S300SX-E Super-Core "S363SX-E" | |
|---|---|
| Product Code: | 1300-909-7047 |
| Manufacturer: | BorgWarner |
| Product Group: | Performance Parts |
| Cubic Size: | 0.0450m3 |
|
|
| Overview: | |
|---|---|
| Turbo Family: | S300SX-E Super-Core "S363SX-E" |
| Compressor Type: | Forged-Milled Wheel (FMW) Extended Tip |
| Compressor Inducer: | 63.00mm |
| Compressor Exducer: | 83.73mm |
| Turbine Inducer: | 79.76mm |
| Turbine Exducer: | 73.37mm |
| Bearing Type: | Journal Bearing |
| Bearing Cooling: | Oil |

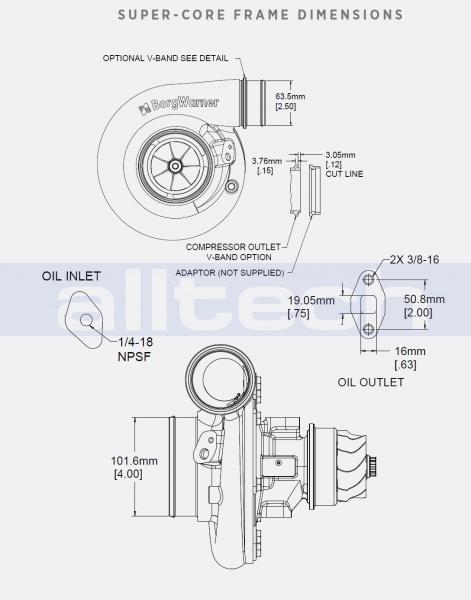

| Flange Details: | |
|---|---|
| Compressor Inlet Flange: | 4.00" Hose |
| Compressor Outlet Flange: | 2.5" Hose with integrated V/band option |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Medium frame |
| Intended Application: | Medium - High power |
| Expected Power Output: | 320 to 1000 HP : 235 to 745 kw |
| Additional Comments: | |
|---|---|
| • 360 degree thrust bearing • Integrated speed sensor port • Forged milled compressor wheel • Flexible compressor cover outlet options • Pre-machined boost port • Optimized compressor stage aerodynamics |
| Optional Accessories: | |
|---|---|
| S300SX Turbine housing .88A/r T4SE | 177211 |
S300SX Turbine housing .91A/r T4DE | 177208 |
S300SX Turbine housing 1.00A/r T4DE | 179905 |
S300SX Turbine housing 1.10A/r T4DE | 178428 |
Turbo Speed Sensor Kit | 179430 |
Turbine Outlet Flange & Clamp kit | S300 Marmon Kit |
