3K is now part of BorgWarner Turbo Systems, a leading supplier of innovative turbocharging systems and a competent partner to the automotive industry worldwide. In the engine output range of 20-1000 kW per exhaust gas turbocharger, BorgWarner Turbo Systems offers a broad range of products for passenger cars and commercial vehicles, as well as for industrial, locomotive and marine engines.
Visit the BorgWarner Website
Take me back to:
Welcome Screen

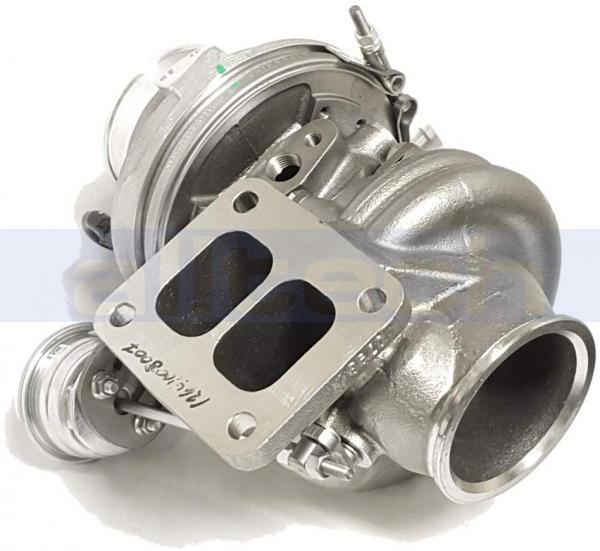

| Borgwarner EFR 7670-C Turbocharger .92/r T4DE | |
|---|---|
| Product Code: | 179390 |
| Manufacturer: | BorgWarner |
| Product Group: | Performance Parts |
| Packaged Weight: | 14kg |
| Cubic Size: | 0.055m3 |
|
|
| Overview: | |
|---|---|
| Turbo Family: | EFR 7670-B |
| Compressor Type: | Forged-Milled Wheel (FMW) Extended Tip |
| Compressor Inducer: | 57mm |
| Compressor Exducer: | 76mm |
| Max Flow Rate: | 64 lb/min |
| Built-in BOV: | All EFR compressor housings incorporate an integrated BOV. |
| Turbine Inducer: | 70mm |
| Turbine Exducer: | 61mm |
| Compressor A/R: | .50 |
| Turbine A/R: | .92 |
| Bearing Type: | Ball Bearing |
| Bearing Cooling: | Oil & Water |
| Flange Details: | |
|---|---|
| Compressor Inlet Flange: | 3.5" Hose |
| Compressor Outlet Flange: | 2.0" Hose |
| Turbine Inlet Flange: | T4 Divided Entry |
| Turbine Outlet Flange: | V/Band |
| Wastegate: | |
|---|---|
| Wastegate Type: | Internal, Supplied with a Medium Boost Actuator |
| Turbo Characteristics: | |
|---|---|
| Turbo Size: | Small frame |
| Intended Application: | Low to Medium power |
| Expected Power Output: | 375 to 650 HP : 280 to 485 kw |
| Additional Comments: | |
|---|---|
| Dual Row Ceramic Ball Bearings – lowest friction and fastest spool/response, most extreme durability, built-in 2mm oil restrictor Watercooled Center Section – watercooling is recommended, 14mm banjo bolts Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage Boost Control Solenoid Valve Integrated to Compressor Housing Integrated Speed Sensor mounting provisions |
| Optional Accessories: | |
|---|---|
| Turbo Speed Sensor Kit | 179430 |
Boost Control Solenoid Valve (BCSV) Plug Kit | 1-287-013-003 |
Turbine Outlet Flange | 95391 |
Turbine Outlet Clamp | 446397-5364 |
Oil Drain Flange | 95005 |
